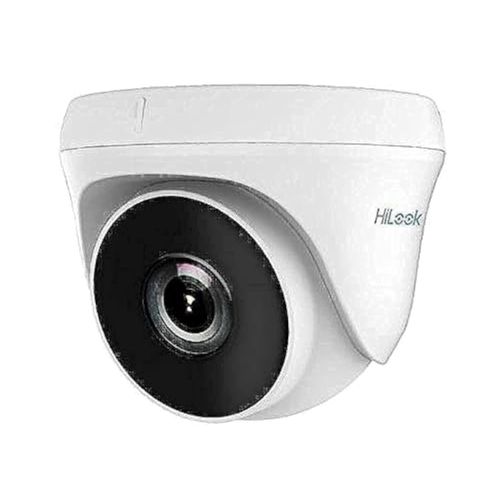

Hilook THC-T120-PC 2 MP Indoor Security Camera

Interface

• Video Output: 1 HD analog output
• Switch Button: TVI/AHD/CVI/CVBS

Menu

• Day/Night ModeI: R cut filter
• DWDR (Digital Wide Dynamic Range): Support
• Language: English
• Functions: Brightness, Sharpness, DNR, Mirror, Smart IR
• Backlight Compensation: Support

Camera

• Image Sensor: 2 MP CMOS image sensor
• Signal System: PAL/NTSC
• Frame Rate: PAL: 1080p@25fps
                       NTSC: 1080p@30fps
• Resolution: 1920 (H) × 1080 (V)
• Shutter Time: 1/25 (1/30) s to 1/50,000 s
• Min. illumination: 0.02 Lux@ (F2.0, AGC ON), 0 Lux with IR
• Lens: 2.8 mm, 3.6 mm
• Horizontal Field of View: 2.8 mm, horizontal FOV: 96.5°, vertical FOV: 48.9°, diagonal FOV: 120.5°
                                            3.6 mm, horizontal FOV: 76.9°, vertical FOV: 40.6°, diagonal FOV: 92.0°
• Lens Mount: M12
• Day & Night: IR cut filter
• Synchronization: Internal synchronization
• Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°

General

• Power Supply: 12 VDC ± 15%
• Power Consumption: Max. 2.1 W
• Material: Plastic
• IR Range: Up to 20 m
• Dimensions: 85.4 mm × 76.12 mm (3.38" × 2.67")
• Weight: 130 g (0.29 lb.)
• Operating Conditions: -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
