Begin with the core ratings: the relay should match your system’s current and voltage needs. A 2-pole relay with a 63A rated current is suitable for medium-sized loads, while voltage trip points such as 275VAC for overvoltage and 195VAC for undervoltage indicate protective thresholds. Look for a high Ue operational voltage around 440VAC and an insulation rating around 500VAC. A higher Uimp rating (around 4kV) means better impulse protection, which helps safeguard equipment from surges.

A voltage relay is used to monitor and react to voltage conditions, helping protect circuits. A relay module, such as a 1-channel isolated unit, handles signal processing and control at low voltages, often used in automation projects. A motor contactor is a heavy-duty switch designed to control large motors. Each serves a distinct role: monitoring and protection, signal control, and power switching for motors or heavy loads.

For home or small workshops, a voltage relay with 2P operation and clear trip thresholds can provide essential protection without complexity. For broader automation or higher power demands, a motor contactor with multiple poles can manage larger loads up to tens of kilowatts. If you’re wiring a compact control panel, a 1-channel relay module offers a compact, easy-to-integrate option for logic-level signals.

Ensure the relay’s ratings align with the circuit’s voltage, current, and impedance. Check that the device is compatible with your control equipment and mounting method, such as DIN-rail installations common in industrial setups. Maintain safe clearances, follow local electrical codes, and keep insulation ratings within the limits of your system to prevent arcing or component damage.

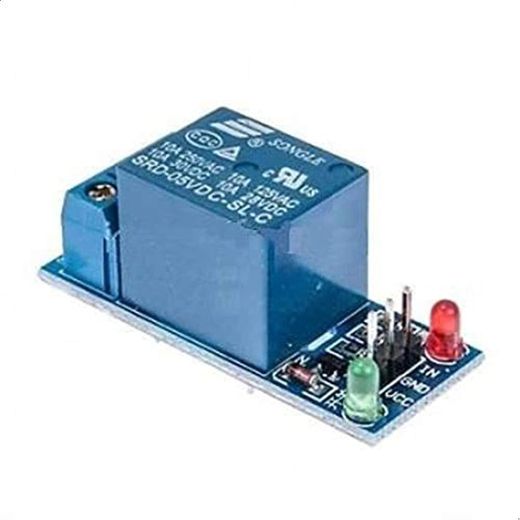

Look for descriptions indicating DIN-mount compatibility or DIN-rail installation in the product notes. A 1-channel isolated relay module is commonly designed for DIN mounting in control panels, making it a convenient choice for compact automation projects. Verifying the mounting standard helps ensure a secure, easy installation and reliable performance.

Confirm that the relay’s current and voltage ratings exceed the maximum load you plan to switch. Inspect insulation and contact ratings, and verify that the control voltage matches your control logic. After installation, perform a careful test under low-load conditions to ensure proper operation of timing, triggering, and fault protection without risking equipment.
