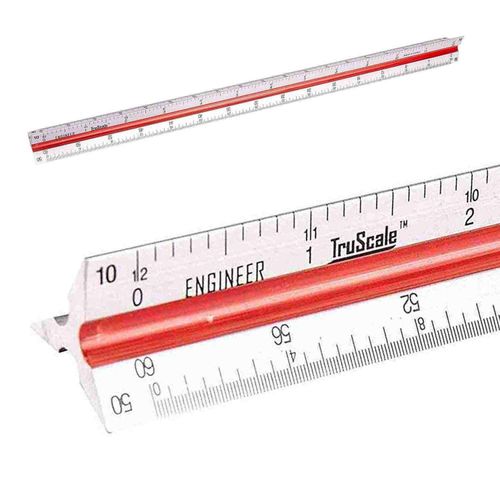

Triangular scale for drafting

Start by matching the scale to your main drafting tasks: portable practice vs. desk-focused precision. You’ll find compact scales around 20x6 cm for easy transport and larger options up to 50 cm for longer straight edges and more accurate angles. Look for transparent plastic for quick overlays and, if you work with fine lines, an inking edge that helps keep lines clean. Some models also feature ergonomic handles to reduce hand fatigue during long sessions. This range lets you mix and match for study and professional projects.

Understanding the best triangle involves balancing size, angle geometry, and extra features like inked edges and ergonomic handles. The most complex attribute is how size and angle interact with usability, because each choice changes how you apply it on the page. A 60-degree angle helps with precise corners, and is common on larger triangles designed for accurate angles in drafts. A 35 cm transparent triangle with a handle aids professional drawing, while a compact 20x6 cm model emphasizes portability. Material and overlays (transparent or coloured) also influence visibility and durability.

For students, portability and ease of use matter most, so start with a compact triangle around 20x6 cm or a mid-size 30 cm option for general practice on a desk. For professionals such as architects or engineers, larger sizes (about 35–50 cm) with features like an inked edge or ergonomic handle provide longer edge accuracy and crisper lines on complex drawings. You’ll see examples like a 20x6 cm model for quick tasks, a 35 cm transparent triangle with a handle for precision, and a 50 cm 60-degree model for bigger scales.

Keep your triangular scales clean and flat to preserve accuracy. Wipe them with a soft, dry cloth to remove dust and fingerprints that can obscure marks. Store them in a protective sleeve or flat drawer to prevent bending, warping, or edge chipping. Avoid exposing plastic scales to high heat or moisture, which can degrade the edge and clarity. Regularly check the edges and corners for nicks, and if you notice any warping or misalignment, consider replacing the affected unit to maintain drafting precision.

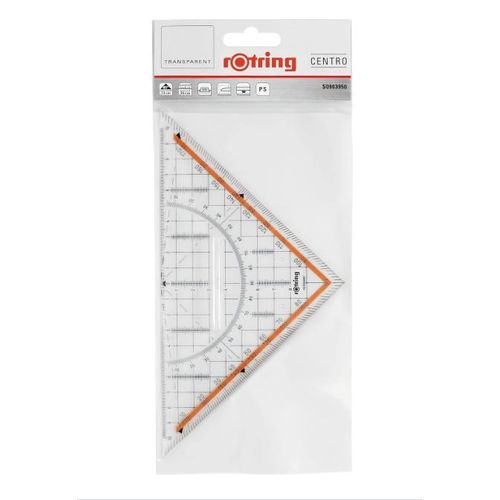

Pair triangular scales with other drafting tools to improve precision and workflow. A straight ruler or a set square extends lines and ensures right angles, while a drafting board provides a stable surface for accurate work. The same-brand professional set square can complement a triangular scale for a complete geometry kit, as seen in high-quality offerings. These tools together enable clean measurements, precise alignment, and stable drawing, making tasks easier during study, design, and engineering projects.

For beginners, start with a small to mid-size triangle to build comfort and accuracy, such as a 20x6 cm or 30 cm model. The compact size fits easily on a desktop, while the larger 30 cm option provides enough length to practice straight-edge drawing without crowding your workspace. Since several triangles in this range are made of transparent plastic, you’ll enjoy clear visibility of guides and overlays. As you gain confidence, add a larger 35–50 cm triangle with a 60-degree angle for more advanced drafting.
